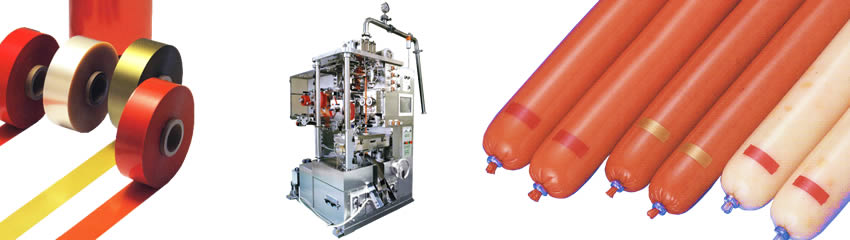

Asahi Kasei s automatic form fill seal machines, or ADP
Series, are machines capable of filling and packaging with Barrialon™-SF films.They are high-performance machines that can volumetrically feed various kinds of food, from liquids with low viscosity like water to products with high viscosity like hams, sausages, cheeses, and boiled fish paste, while filling them in bags and sealing them in packages.
This is a super-high speed packer with updated tape cutting for multi-kind production which can fully resolve the easy open function and performance and also deal with sharp cost.
Provides products with precise dimensions and small weight variations.
Sizes of products are easily adjustable by changing parts.
Capable of feeding various kinds of food, from liquids with low viscosity like water to products with high viscosity like boiled fish paste.
Contributes to high productivity and streamlined operations.
Print films with simple patterns can also be used (Option).
Various alarm devices and dating machines can be connected (Option).
The attached cut-off tape seals help customers open the packages.
| Specifications | |||
|---|---|---|---|
| Production capacity | With tape cutting | Speed:240 strokes/minute at the maximum | |
| Without tape cutting | Speed:(optionally switchable) | ||
| Specifications of the product | AO Type | A Type | |
| Folding width of the product | 19-29mm | 30-50mm | |
| Length of the product | 105-250mm | 130-250mm | |
| Weight of the product | 14-50g | 45-150g | |
Date printing machine
Attached to ADP, you can automatically print the date .
The alignment device
The pattern of the print film is an automatic control device for ligated in place .
Horizontal cut over tape device
Because of the opening of improvement of the product , it is a device to attach the cut tape to the side.
Film auto splicer
It is an automatic feeding device of the film .
