Greatly effective as measures against bridging and rusting of containers.
- Compound of rubber in ultrahigh molecular-weight polyethylene, which is hard to adhere, has made sheet lining possible.
- The angles of repose of our products are larger than those of the conventional products, which thereby work as a preventive measure for bridging of coal ash, food (salt, sugar, and crops) hoppers, bunkers, and shoots, and contribute to an increase in capacity.
- Prevents rusting, etc., of container materials to protect contamination of granular foods, paste foods, and the insides of containers, such as mixers.
- Standard container materials: Lining is possible for stainless steel materials, iron materials, new concrete materials, etc.
Features
- -Because the coefficients of friction are small, 0.12, the products prevent bridging.
- -The mating materials to attach on the rubber side can be concrete, iron, and stainless steel, attached with a special adhesive.
- -Sealing measures of joints are perfect.
- -Because the products are compliant with Notification No. 370 by the Ministry of Health and Welfare concerning food containers and packages, etc., direct contact with foods is allowed.
- -Prevents generation of and contamination with rust, etc.
Specifications
Dimensional tolerances (mm): Thickness: +0.3 - 2.0, Width: +2.0 - 10.0, Length: +3.0 - 15.0
| Size (mm) | Thickness (mm) |
|---|---|
| 900 x 1800 | 1t + White rubber 1t |
| 900 x 900 | 2t + White rubber 1t |
| 3t + White rubber 1t |
Examples of applications
- -Inner lining of concrete bunkers for table salt
- -Inner lining of lightweight stainless steel hoppers for sugar
- -Inner lining of SS bunkers for coal

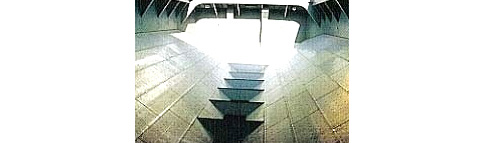

Lining of table salt tank cone parts
Lining of salt storage bunkers
