NanoAct ™
Higher Sensitivity and Multicolor…
Utilizing our cellulose technology matured and advanced for more than 80 years, Asahi Kasei has developed innovative colored nano beads, which have been patented.
Using NanoAct ™ as labeling particles for IVD is expected to increase the sensitivity and result in faster detection times. In addition, the coloring method based on the unique characteristics of cellulose materials makes cellulose beads of multiple colors available.
Features
1 NanoAct ™ provides higher sensitivity.
Compared to commercially available labels (particles), with the combination of a larger diameter and color intensity, NanoAct ™ produces better visibility and presents better detection of low antigen concentrations.
2 NanoAct ™ enables faster detection time.
Higher visibility of test lines can be achieved, leading to a faster detection time.
*Comparison between a test kit using NanoAct ™ (upper) and a test kit using colloidal gold (lower). Using the same antibody concentration, test lines 3 minutes after adding samples appeared more visible on NanoAct ™.
3 NanoAct ™ multiple Color
NanoAct ™ can be utilized to classify test lines with a variety of colors available.

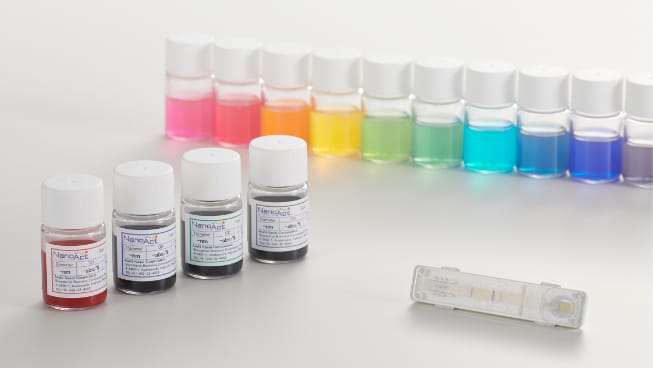

The above photo is a test kit using NanoAct ™ (red, blue, green, and black).
Product Information
| Catalog No. | Type | Color | Particle Diameter(nm) | OD(ABS,1wt%) | Concentration(wt%) |
|---|---|---|---|---|---|
| RE1AA | Passive Adsorption | Red | 330 | 225 | 1.0 |
| RE2AA | Dark Red | 340 | 240 | ||
| BL1AA | Navy | 325 | 255 | ||
| BL2AA | Dark Navy | 365 | 265 | ||
| GR1AA | Green | 335 | 160 | ||
| KR1AA | Black | 350 | 150 | ||
| RE1CA | Covalent | Red | 335 | 220 | |
| BL1CA | Navy | 320 | 230 | ||
| GR1CA | Green | 335 | 155 |
-
Model studies
The results of hCG and Troponin I (TnI) assays are provided as reference examples.
-
Results of a
clinical test
of influenza test kitsThe performance of commercially available kits using
NanoAct ™ is presented.
