(Diagnostic Reagent Grade) ASAHI KASEI ENZYMES T-69REACH適合品

PURINE NUCLEOSIDE PHOSPHORYLASE [PNPLⅡ]

from Bacillus sp.
(Purine–nucleoside: orthophosphate ribosyltransferase, EC 2.4.2.1)

Inosine + Pi → Hypoxanthine + D–Ribose 1–phosphate

Preparation and Specification

Appearance: : Colorless to light brownish solution

Specific activity: : More than 500 U/ml

Properties

Molecular weight: : 280±5 kDa (gel filtration)
36±5 kDa (SDS–PAGE)

Isoelectric point: : pH 5.3±0.2

Optimum pH: : 8.0Figure 1

pH stability: : 6.0–10.0 (37℃, 60 min) Figure 2

Optimum temperature: : 65℃ (Tris–HCl buffer) Figure 3

Thermal stability: : Stable at 65℃ and below (pH 8.5, 10 min) Figure 4

Effect of metal ions: : See Table 1

Applications for Diagnostic Test

This enzyme is useful for enzymatic determination of inorganic phosphate when coupled with xanthine dehydrogenase (T–134) .

	PNPL Ⅱ
Pi + Inosine	→	Hypoxanthine + Ribose 1-phosphate
	XDH Ⅱ
Hypoxanthine + 2 NAD^＋+ H₂O	→	Urate + 2 NADH + 2 H^＋

Table 1. Effect of metal ions on PNPL Ⅱ activity

Metal ion	Relative activity (%)
None	100
KCl (10mM)	107
NaCl (10mM)	107
CsCl (10mM)	105
LiCl (10mM)	107
NH₄Cl (10mM)	107
MgCl₂ (1mM)	107
CaCl₂ (1mM)	101
BaCl₂ (1mM)	105
MnCl₂ (1mM)	36.0
ZnCl₂ (1mM)	102
CoCl₂ (1mM)	24.0
CuCl₂ (1mM)	1.0
NiCl₂ (1mM)	86.0
EDTA (1mM)	112

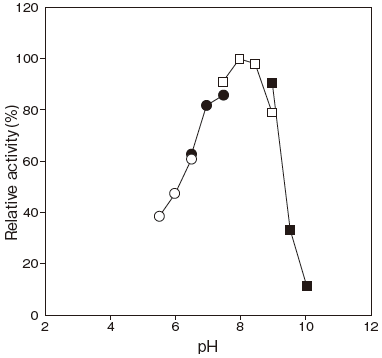

Fig.1 pH Optimum

〇: Acetate buffer
●: PIPES buffer
□: Tris-HCI buffer
■: Glycine-NaOH buffer

Fig.2 pH Stability

37℃, 60min
〇: Acetate buffer
●: Phosphate buffer
□: Tris-HCI buffer
■: Glycine-NaOH buffer

Fig.3 Optimum Temperature

pH 8.0
100mM Tris-HCI buffer

Fig.4 Thermal Stability

pH 8.5, 10min.
100mM Tris-HCI buffer

Assay

Principle

The assay is based on the increase in absorbance at 340nm as the formation of NADH proceeds in the following reactions:

	PNPL Ⅱ
Inorganic phosphate+Inosine	→	Hypoxanthine+D–Ribose 1–phosphate
	XDH Ⅱ
Hypoxanthine+NAD⁺	→	Xanthine+NADH+H⁺
	XDH Ⅱ
Xanthine+NAD⁺+H₂O	→	Urate+NADH+H⁺

XDH Ⅱ: Xanthine dehydrogenase
NAD : Nicotineamido adenine dinucleotide

Unit definition

One unit is defined as the amount of enzyme which converts 1 μmole of inosine to hypoxanthine per minute at 37℃ under the conditions specified in the assay procedure.

Reagents

Reaction mixture

0.2 M Tris–HCl buffer　pH 8.2
1.50 ml

10 mM NAD solution 0.45 ml

30 mM KH₂PO₄ solution 0.30 ml

20 mM Inosine solution 0.60 ml

80 U/ml XDH Ⅱ solution ¹⁾ 0.03 ml

Distilled water 0.12 ml

1) : 80 U/ml XDH Ⅱ solution
Dissolve 800 U of XDH Ⅱ with 10 ml of 20 mM Tris–HCl buffer pH 8.0 containing 5 mM EDTA.
Enzyme dilution buffer
20 mM Tris–HCl buffer pH 7.5
Reagents
NAD: NACALAI TESQUE, INC. #24334–84
Inosine: FUJIFILM Wako Pure Chemical Corporation
#099–00231
EDTA: ( 2 Na・2 H₂O) KISHIDA CHEMICAL Co., Ltd.
#060–29133
XDH Ⅱ : Asahi Kasei Pharma Corporation　#T–134
EDTA: Ethylenediamine tetraacetic acid

Enzyme solution

Dilute accurately 0.5 ml of the sample with enzyme dilution buffer to make a 50–fold solution. Dilute with enzyme dilution buffer to adjust the concentration as required.

Procedure

Pipette accurately 3.0 ml of reaction mixture into a small test tube and preincubate at 37℃.
After 5 min, add 50 μl of enzyme solution and mix to start the reaction at 37℃.

※ In the case of a test blank, add 50 μl of enzyme dilution buffer in place of enzyme solution.
After starting the reaction, measure the rate of increase per minute in absorbance at 340 nm. The rate must be measured within the linear portion of the absorbance curve.

Absorbance sample : As/min

blank : Ab/min

△A/min = (As/min－Ab/min) ≦ 0.045 Abs/min

Calculation

Activity (U/ml) = {(△A/min) /(6.22×2)}× 3.05/0.05 × D

6.22 :	millimolar extinction coefficient of NADH at 340 nm ( cm² /μmole)
2 :	a multiplier derived from the fact that 1 mole of inorganic phosphate produces 2 mole of NADH.
3.05 :	final volume (ml)
0.05 :	volume of enzyme solution (ml)
D :	times of dilution in enzyme solution

Storage

Storage at －20℃ in the presence of a desiccant is recommended.

PNPL Ⅱ活性測定法 (Japanese)

試薬液

反応試薬混合液

0.2M トリス–HCl 緩衝液 pH8.2	1.50 ml
10mM NAD 溶液	0.45 ml
30mM リン酸一カリ溶液	0.30 ml
20mM イノシン溶液	0.60 ml
80U/ml XDH Ⅱ溶液¹⁾	0.03 ml
精製水	0.12 ml

1) :	80U/ml XDH Ⅱ溶液 XDH Ⅱ 800 単位 (U) を5mM EDTA を含む20mM トリス–HCl 緩衝液pH8.0 10ml で溶解する。

酵素溶解希釈用液
20mM トリス–HCl 緩衝液 pH7.5
試薬
NAD (ニコチンアミドアデニンジヌクレオチド)
：ナカライテスク製　#24334–84
イノシン (Inosine) ：
富士フイルム和光純薬製　#099–00231
EDTA (エチレンジアミン四酢酸・2Na・2H₂O) ：
キシダ化学製 #060–29133
XDH Ⅱ (キサンチン脱水素酵素) ：
旭化成ファーマ製　#T–134

酵素試料液

検品0.5ml を酵素溶解希釈用液で50 倍に希釈する。

その液を酵素溶解希釈用液で適宜希釈する。

測定操作法

小試験管に反応試薬混合液3.0ml を正確に分注して37℃で予備加温する。
5 分経過後、酵素試料液50 μl を加えて混和し、37℃で反応を開始する。

※ 盲検は酵素試料液の代わりに酵素溶解希釈用液50 μl を加える。
反応開始後、340nm における吸光度を測定して直線的に反応している1 分間当たりの吸光度変化を求める。
求められた吸光度変化を試料液はAs/min、盲検液はAb/min とする。
ΔA/min = (As/min－Ab/min) ≦ 0.045 Abs/min

計算

活性 (U/mg) = {(ΔA/min)/ (6.22 × 2)}×3.05/0.05×D

6.22 :	NADH の340nm におけるミリモル分子吸光係数 (cm² / μmole)
2 :	無機リン1 モルからNADH 2モルが生成することによる係数
3.05 :	反応総液量 (ml)
0.05 :	反応に供した酵素試料液量 (ml)
D :	酵素試料液の希釈倍率

10 mM NAD solution	0.45 ml
30 mM KH₂PO₄ solution	0.30 ml
20 mM Inosine solution	0.60 ml
80 U/ml XDH Ⅱ solution ¹⁾	0.03 ml
Distilled water	0.12 ml

Absorbance sample :	As/min
blank :	Ab/min

PURINE NUCLEOSIDE PHOSPHORYLASE [PNPLⅡ] (T-69)
