LIPASE [LPM] (T-116)

(Diagnostic Reagent Grade) ASAHI KASEI ENZYMES T-116REACH compliant product


mixture of LP (T–01) and MGLP II (T–117)

Triglyceride + 3 H2O → Glycerol + 3 Fatty Acid

★  Advantages
  High Reactivity
  Thermal stability
  Stability in solution

Preparation and Specification

: White to pale brownish amorphous powder, lyophilized
Specific activity
: LP ; 1500–3500 U/mg

Applications for Diagnostic Test

The enzyme is useful for enzymatic determination of triglyceride when coupled with glycerophosphate oxidase (T–60) and glycerol kinase (T–64)

TG + 3H2O Glycerol + 3 FFA
Glycerol + ATP G-3-P + ADP
G-3-P + O2 DHAP + H2O2
2H2O2 + 4-AA + Phenol Quinoneimine dye + 4 H2O

TG : Triglyceride
FFA : Free fatty acid
DHAP : Dihydroxyacetone phosphate

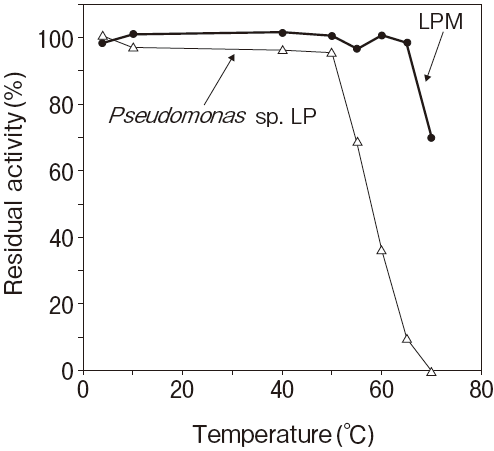

Fig.1 Thermal stability

Stored in R2 of TG reagent
Residual activity (%) after 30 min. at each temperature
Activity assay method: 37℃

Titration method using olive oil as substrate
Titration method using olive oil as substrate
LPM : 65℃ 30 min.
Pseudomonas sp. LP : 50℃ 30 min.
20mM, PIPES pH7

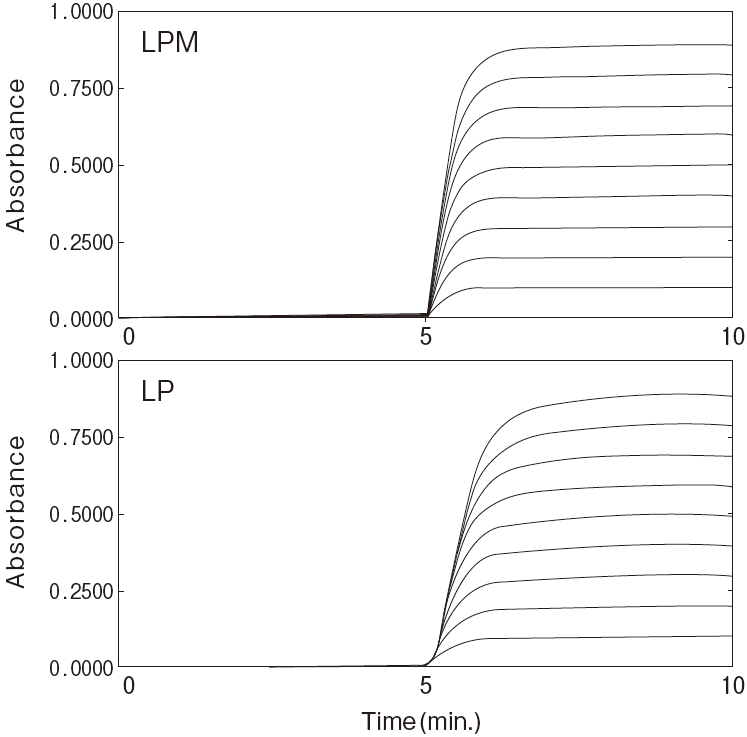

Fig.2-1 Dilution linearity using human serum

Sample : Human serum
Analyzer : Hitachi 7150

Reaction time course

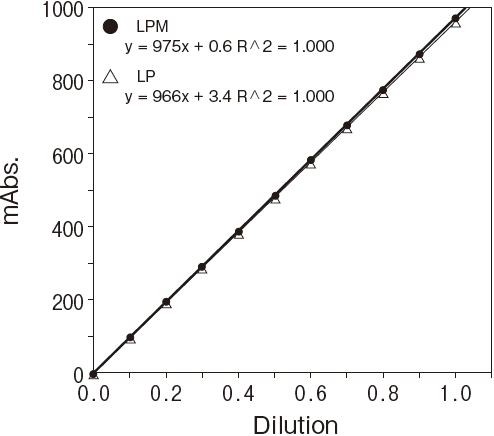

Fig.2-2 Dilution linearity using human serum

Sample : Human serum
Analyzer : Hitachi 7150

Linearity in dilution

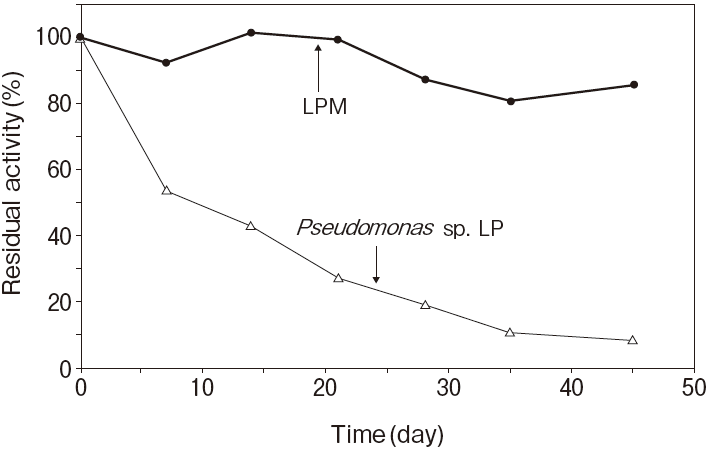

Fig.3-1 Liquid stability

Residual activity (%) after 45 days at 40℃ in R2 of TG reagent

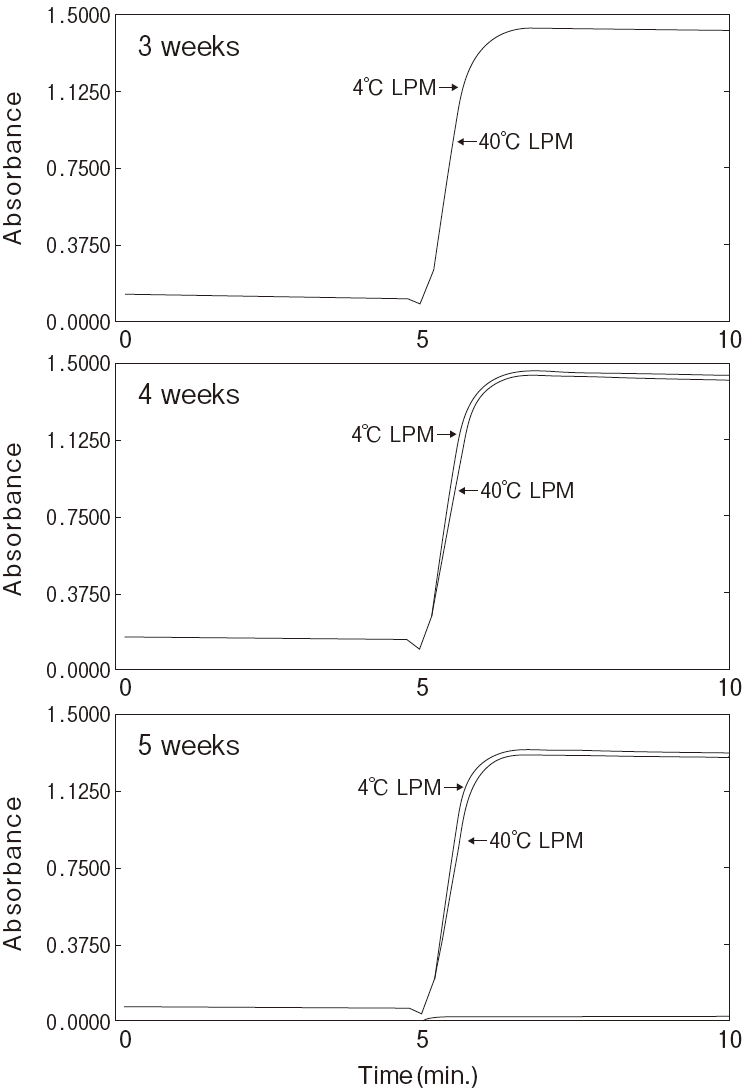

Fig.3-2 Liquid stability(Reactivity to TG)

Reactivity after 3, 4 and 5 weeks at 40℃ in R2 of TG reagent. (Control : Reagent stored at 4℃)


  1. The assay is based on the titration of fatty acids liberated in the following reactions:

Triglyceride+3 H2O Glycerol+3 Fatty acid
  ( Titration)
Fatty acid+NaOH Na–Fatty acid+H2O
Unit definition
  1. One unit is defined as the amount of enzyme which liberates 1 μmole of fatty acid per minute at 37℃ under the conditions specified in the assay procedure.

  1. Substrate suspension (Olive oil and Adekatol SO–120) 50 g of Olive oil: (Japanese Pharmacopoeia grade) and 50 g of Adekatol SO–120 are suspended with 150 ml of distilled water.
  2. Reaction stopper
    Mixture of ethanol and acetone (1:1)
  3. Indicator
    1% (W/V) Phenolphthalein–ethanol solution
  4. Titration solution
    50 mM NaOH solution
  5. Enzyme dilution buffer
    0.1 M KH2PO4–NaOH buffer, pH 8.0 containing
    0.1% (W/V) BSA and 0.1% (W/V) NaN3
  6. Reagents
    Olive oil: (Japanese Pharmacopoeia grade)
    Ethanol: (Japanese Pharmacopoeia grade)
    Adekatol SO–120: ADEKA CORPORATION
    BSA: Millipore Fraction V pH5.2 #81–053
Enzyme solution
  1. Accurately weigh about 10 mg of the sample and add enzyme dilution buffer to make a total of 50 ml.
    Dilute it with enzyme dilution buffer to adjust the concentration to within 2–4 U/ml.

  1. Pipette accurately 5 ml of substrate suspension and 2 ml of distilled water into a test tube (24 mm i.d. × 200 mmH) and mix to start the preincubation at 37℃.
  1. After 10 min, add 0.5 ml of enzyme solution and mix to start the reaction.
    In the case of a test blank, add 0.5 ml of enzyme dilution buffer in place of enzyme solution.
  2. After 20 min, stop the reaction with 16 ml of reaction stopper.
  3. Add 3 drops of indicator and titrate the whole mixture with under nitrogen gas bubbling.
    End point of titration: Appearance of the same color as that of the blank
    Titration volume sample : Vs
    blank : Vc
    △V = (Vs−Vc) ≦ 2.5 ml
      Vc ≦ 0.6 ml
  1. Activity (U/mg of powder) = {(△V×F)/20}× 50× 1/0.5 × 1/x
    20 : reaction time (min)
    F : factor of titration solution (50 mM NaOH)
    50 : concentration (mM) of titration solution
    ( 50 mM NaOH)
    0.5 : the volume of enzyme solution (ml)
    X : concentration of the sample in enzyme solution
    ( mg/ml)
  1. Storage at−20℃ in the presence of a desiccant is
    recommended. Enzyme activity will be retained for at least one year under this condition

  1. Yamaguchi, T., Muroya, N., Isobe, M. and Sugiura, M. (1973) Agric. Biol. Chem., 37, 999–1005.
  2. Sugiura, M., Isobe, M., Muroya, N. and Yamaguchi, T. (1974) Agric. Biol. Chem., 38, 947–952.
  3. Sugiura, M. and Isobe, M. (1974) Biochem. Biophys. Acta, 341, 195–200.
  4. Sugiura, M. and Isobe, M. (1975) Chem. Pharm. Bull., 23, 1226–1230.
  5. Horiuchi, Y., Koga, H. and Gocho, S. (1976) J. Biochem. (Tokyo) , 80, 367–370.
  6. Saiki, T., Takagi, Y. Suzuki, T., Narasaki, T., Tamura, G. and Arima, K. (1969) Agric. Biol. Chem., 33, 414.

LPM 活性測定法 (Japanese)

  1. 基質懸濁液 (オリーブ油とアデカトールSO–120 の懸濁液)
    「局方」オリーブ油50.0g とアデカトールSO–120
    50.0g を精製水150ml に懸濁する。
  2. 反応停止液
    エタノールーアセトン (1:1) 混液
  3. 指示液
    1% (W/V) フェノールフタレンーエタノール溶液
  1. 滴定液
    50mM NaOH 液
  2. 酵素溶解希釈用液
    0.1% (W/V) BSA と0.1% (W/V) NaN3 を含む
    0.1M KH2PO4–NaOH 緩衝液 pH8.0
  3. 試薬
    アデカトールSO–120:ADEKA 製
    BSA : Millipore 製 Fraction V pH5.2 #81–053
  1. 検品約10mg を精密に量り、酵素溶解稀釈溶液に溶解して全容50ml とする。
    その液を酵素溶解希釈用液で2~4U/ml 濃度となるように適宜希釈する。
  1. 試験管 (24mm i.d. × 200mm H) に基質懸濁液5mlと精製水2ml を正確に分注して攪拌混和後、37℃で予備加温する。
  2. 10 分経過後、酵素試料液0.50ml を加えて混和し、37℃で反応を開始する。
    盲検は酵素試料液の代わりに酵素溶解希釈用液0.50ml を加える。
  3. 20 分経過後、反応停止液16.0ml を加えて反応を停止する。
  4. 指示液3 滴を加えてN2 ガスで攪拌しながら滴定液で滴定する。
    滴定の終点は盲検時と同色 (淡赤色) を呈した時点とする。
    求められた滴定量を試料液はVs、盲検液はVc とする。
    ΔV = (Vs−Vc) ≦ 2.5 ml
      Vc ≦ 0.6 ml
活性 (U/mg) = {(ΔV×F)/20}×50 × 1/0.5 × 1/x
20 : 反応時間 (min)
F : 滴定液 (50mM NaOH) のFactor
50 : 滴定液 (50mM NaOH) の濃度 (mM)
0.5 : 反応に供した酵素試料液量 (ml)
X : 酵素試料液中の検品濃度 (mg/ml)
