SOLCOMAT™

What is SOLCOMAT™?

SOLCOMAT™ is an innovative civil engineering material that Asahi Kasei has been developing since 1972 in order to slope protection & erosion control.
SOLCOMAT™ is formed by bonded unique-shaped concrete blocks on special filter cloth with adhesive. The special filter cloth is made of strong and durable synthetic fiber.
SOLCOMAT™ can be adjusted to any length at factory,which contributes to easy transportation & installation work.
SOLCOMAT™ is excellent in slope protection from erosion and laborsaving. In addition, it is a perfect choice for conservation of nature because plants can grow through the opening of filter cloth and concrete blocks.

Size of mattress

FEATURES OF SOLCOMAT SYSTEM

1. Suitable for erosion control

It protects the surface of soil with combination of concrete blocks and filter cloth.


2. Excellent in water permeability

Water comes from the ground surface is evenly absorbed into the lower soil through the opening of each block and filter cloth. On the other hand, the water behind the slope comes out from the surface of SOLCOMATTM through filter cloth and the opening of blocks. Besides the soil is protected against flowing out with the mesh of filter cloth, which reduces the water pressure inside the soil and prevent slope from collapse. ( Suitable places : Water's edge,Water-front where water level changes, the places with spring water and etc.)


  • 2. Excellent in water permeability

3. Flexibility of the filter cloth

The filter cloth used for SOLCOMAT™ is so flexible that it fit in to the ground with time. ( Suitable places : Erosive Scouring slopes, soft ground at risk from differential settlement and etc.)


  • 3. Flexibility of the filter cloth

4. It can keep vegetation and helping plants regrow

Plants can regrow out of the opening of blocks through the filter cloth. The roots help unite the mat and soil, which secures protection effect. Thick plants also play a roll as protector for erosion by themselves. As a result, beauty of nature can be kept with vegetation unlike conventional concrete block methods. ( Suitable places : Riverbanks, parks, recreational areas and etc.)


  • 4. It can keep vegetation and helping plants regrow

5. Fast and Easy installation work

It is manufactured at factory in customized length, and can be installed in a short time using mechanical power (crane). No special technician is necessary to install SOLCOMAT™ . ( Suitable places : Large areas, emergency restoration and etc.)


6. Underwater work is available

  • 5. Fast and Easy installation work

EXAMPLES OF APPLICATION FOR SLOPE PROTECTION

«REMARKS» ABOUT THIS CATALOGUE : This catalogue provides only a brief outline of SOLCOMATTM .
Please ask us for further information on design and installation.
SCOPE OF APPLICATION : Before use you are recommended to design based on our design criteria and the technical guideline on disaster relief work rivers(draft) by National Association of Disaster Prevention.
Please make sure to consult us when the product is used for purposes other than the examples listed in this catalogue.
CAHNGE OF SPEC : Please note that the product specification is subject to change for improvement without prior notice.

Exemption of liability
We are not responsible for the problems listed below.
·Any problem resulting from design contrary to the instructions listed in this catalogue
·Any problem resulting from end user's own instruction and/or work method other than specified in the standard specifications
·Any problem resulting from being used for other purposes and/or sites than predetermined.
·Any problem resulting from an act by a user of a third party intentionally or negligently
·Any problem resulting from tampering of structure,performance and/or specifications after delivery
·Any problem resulting from not notifying immediately when (a) defect(s) found
·Any problem resulting from use under different circumstances (temperature,humidity,water level,ground and etc.)than ordinarily-expected.
·Any problem resulting from force majeure such as natural disaster,earthquake,ground sinking,fire and explosion.

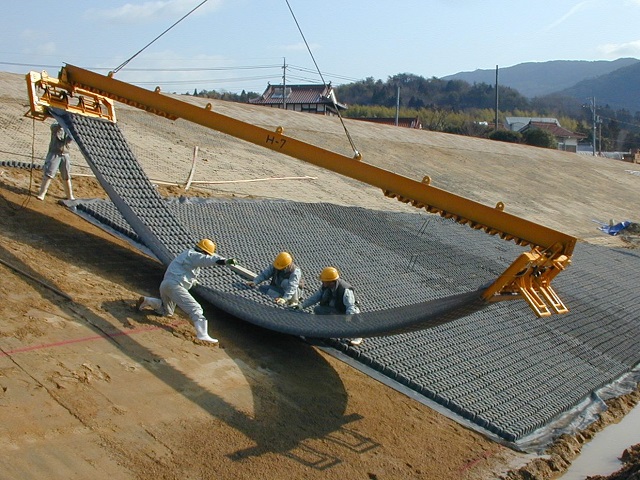

INSTALLATION OF SOLCOMAT™
