TRIGRID®EX
What is TRIGRID®EX?
TRIGRID EX of Cell Force System has been using as reinforcing materials for embankment. This material is grid shaped Geotextile which is called to Geogrid products. TRIGRID EX is made with Polypropylene resign coated Polyester fiber's core. It has high strength, anti-chemical, anti-shock durability, notable creep control and flexible product brings easy and economical construction, even its steep slope and long slope embankment. Features of TRIGRID EX are as follows,
Features TRIGRID®EX
It has excellent friction characteristics with the soil and excellent integrity in the soil, it is possible to economically install on project site.

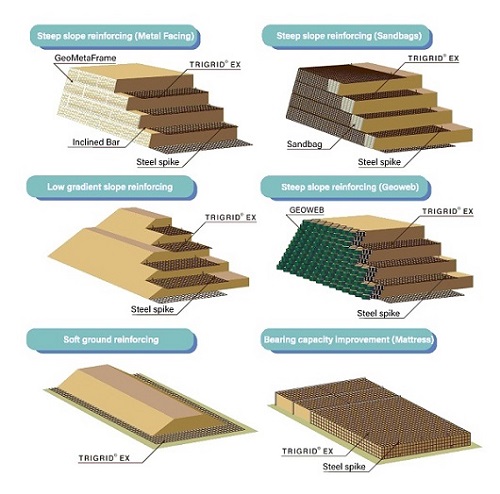

It is possible to prevent the sliding failure and increase in bearing capacity on soft ground.
A stable earth structure can be built because creep deformation is small for long-term loading.
It is easy to handle because TRIGRID®EX has appropriate rigidity, light weight and excellent flexibility.
TRIGRID®EX has certificate number 0808 from Public Works Reserch Center.
TRIGRID®EX1
TRIGRID®EX2
TRIGRID®EX3
TRIGRID®EX
TRIGRID®EX

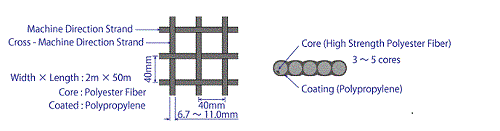

Specification
| properties | unit | EX-40 | EX-60 | EX-80 | EX-100 | EX-150 | EX-200 |
|---|---|---|---|---|---|---|---|
| Core | Polyester High tensile Fibers | ||||||
| Coating | Polypropylene (PP) resin | ||||||
| Opening | mm | 40×40 | |||||
| Width | m | 2 | |||||
| Roll Length | m | 50 | |||||
| QC strength (longitudinal) | kN/m | 38 | 57 | 74 | 95 | 144 | 187 |
| Creep rate coefficient | 0.65 | ||||||
| Creep strength (longitudinal) | kN/m | 24.7 | 37.1 | 48.1 | 61.8 | 93.6 | 121.6 |
| Roll weight | kg | 35 | 41 | 47 | 56 | 65 | 78 |
