DELPET™
Surface Light-Emission Series

Asahi Kasei's Surface Emission Series DELPET™ is a methacrylic resin that emits light from the end of a resin plate, allowing the entire plate to emit light. Realizes unprecedented high dispersibility and high brightness.

Surface Light-Emission Series

Surface light emission for stylish designs

DELPET™ Surface Light-Emission series is a methacrylic resin that can emit light from the entire resin plate using the light source at the edge. It enables lighting with rich design. It also contributes to space saving and cost reduction by reducing the number of LEDs.

Surface Light-Emission series details

Surface Light-Emission series features

Light taken in from the edge is scattered and emitted at the surface.

High degree of freedom in molding

A wide lineup of products with different transmittance, diffusion rate, and appearance

Light diffusion is possible without die machining

Image showing an example of surface emission

The DELPET™ Surface Light-Emission series uses a light source from the edge of the resin plate to make the entire plate glow.

The light emitted by the DELPET™ Surface Light-Emission series. The light source color can be reproduced beautifully. The diffusion rate is higher on the right side of the image, and the light is emitted brightly over a short distance. The diffusion rate is lower on the left side, and the light reaches the extremities.

Image showing an example of surface emission

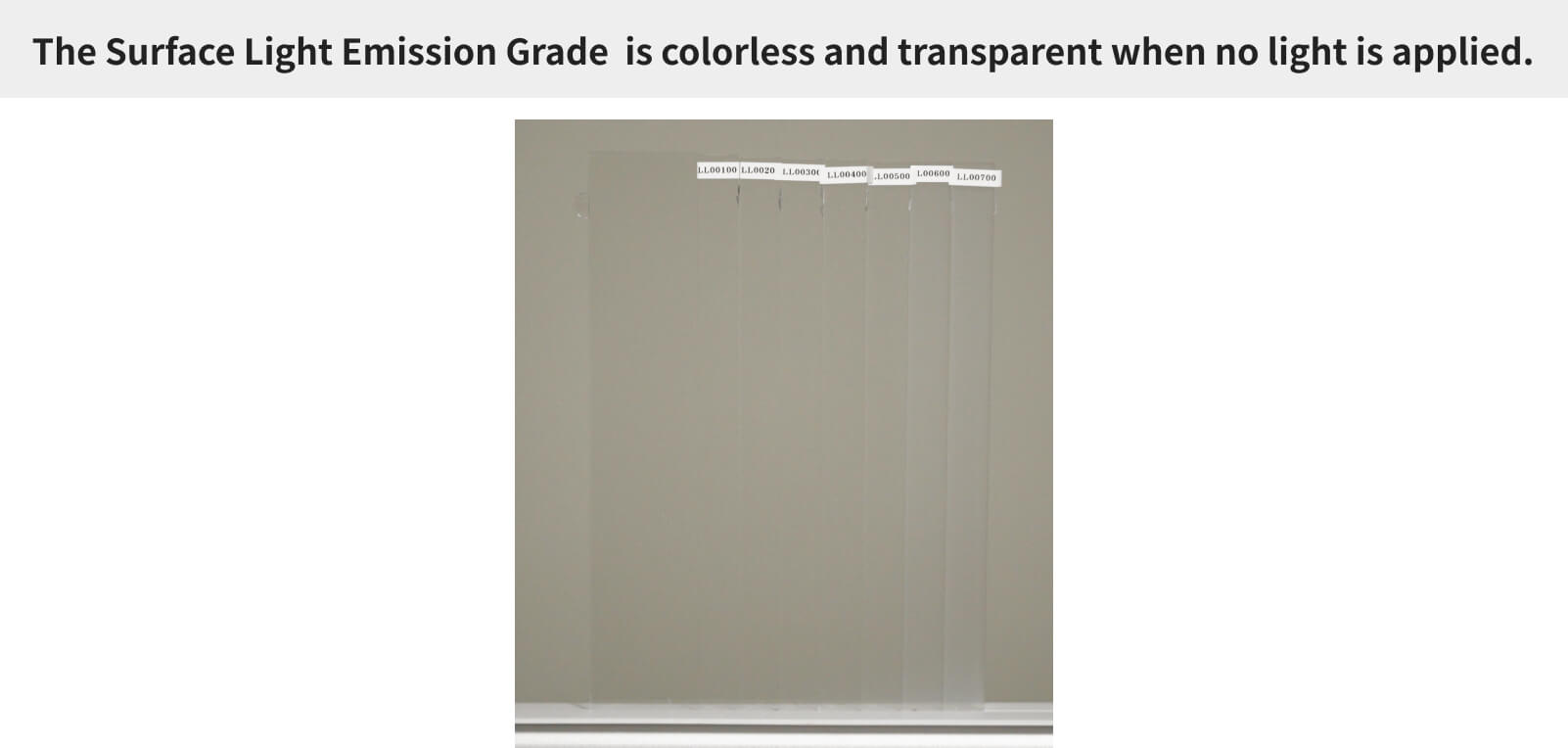

The DELPET™ Surface Light-Emission Series is colorless and transparent when turned off.

Image showing the surface when light emission is turned off

Surface Light-Emission series optical property data examples

* The property value is a representative value and not a guaranteed value.

The DELPET™ Surface Light-Emission series has several grades with different diffusion rates. Grades with high diffusion rates emit bright light in areas close to the light source, while grades with low diffusion rates emit light dimly even in areas far from the light source.

Surface Light-Emission optical property data

Surface Light-Emission series applications

Automobile exteriors (lamps, emblems)

Motorcycle lamps

Display boards

Automobile interiors (switches, console panels, lights)

Lighting decoration
