SaranLock™

SaranLock™ is a non-woven with 3-dimensional bulk produced by binding spiral-shaped Saran™ fibers with PVDC latex. Low resistance to air passage, high filtration efficiency, and a large dust collecting capacity make it an exceptional filter medium. Used in filters for both gases and liquids in a wide range of applications including fish farming and civil engineering.

Features of SaranLock™

Easy to Care

SaranLock™ is plate-like product having suitable elasticity It can be cut into free shape and held to the various frames.

Stabilizes Chemically and Physically

It is a material of the acidity-proof, alkali resistance, and the resistance to oil. In addition, it is hardly dissolved to an organic solvent.

Flame Resisting

SaranLock™ is the filter material with excellent flame resisting

SaranLock™ Type

P.N. Thickness
(mm)
denier
d(dtex)
weight
(kg/m²)
Weight
per+m³
(kg/m³)
Surface area
(m²/m³)
Porosity
(%)
Limiting
Oxygen
Index
(L.O.I)
OM-150 10 600 -
1,000d
(670 -
1,100dtex)
1.1 113 620 93 -
15 1.1 75 410 96 49.5
25 1.9 47.8
50 3.8 65 360 96 -
OS-100 50 1,000d
(1,100dtex)
2.5 50 240 97 -
OS-120 50 4,000d
(4,400dtex)
3.0 60 150 96 49.1
OS-180 20 500d
(560dtex)
1.8 90 620 95 48.2
30 2.7 -
CS-100 10 75d
(83dtex)
0.5 50 740 97 -
20 1.0 49.6
CS-120 20 75d
(83dtex)
1.2 60 890 96 50

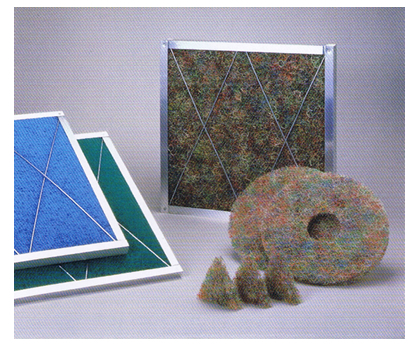

Examples of SaranLock™’s use

SaranLock™ filter is a product with a high porosity.It is excellent in the following performance because of an effective structure and material for the collection.

  • The trapping efficiency is high
  • The pressure loss is low.

The trapping efficiency is high

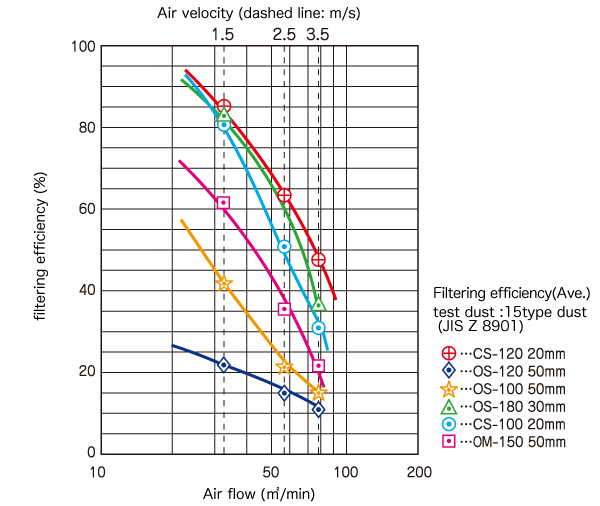

Fig.1 The relation between trapping efficiency and airflow
捕集率と風量の関係 グラフ
*Test Method : JIS B 9908
Size : 61 x 61 cm

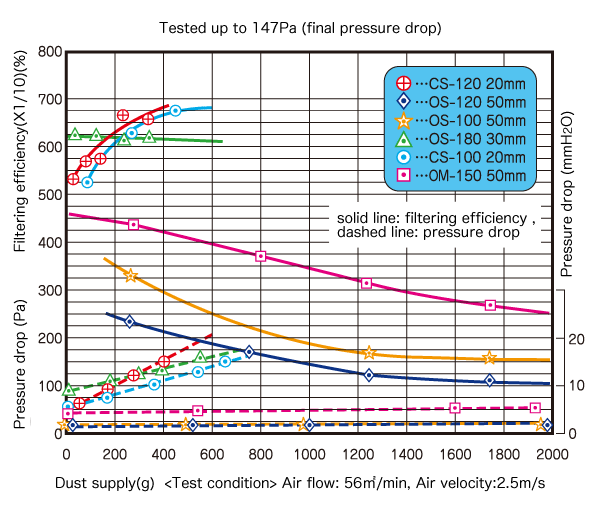

Fig.2 The relation between trapping efficiency, pressure loss and charge rate of dust
捕集率、圧力損失と粉塵供給量の関係 グラフ

The pressure loss is low.

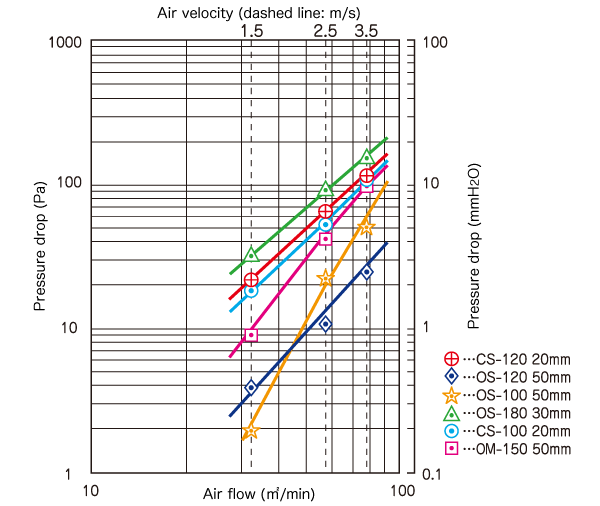

Fig.3 The relation between pressure loss and airflow
圧力損失と風量の関係図 グラフ
