Water Treatment Process OLT Series

This UF membrane (ultrafiltration membrane) is designed for ultrapure water production processes essential for advanced LSI manufacturing.

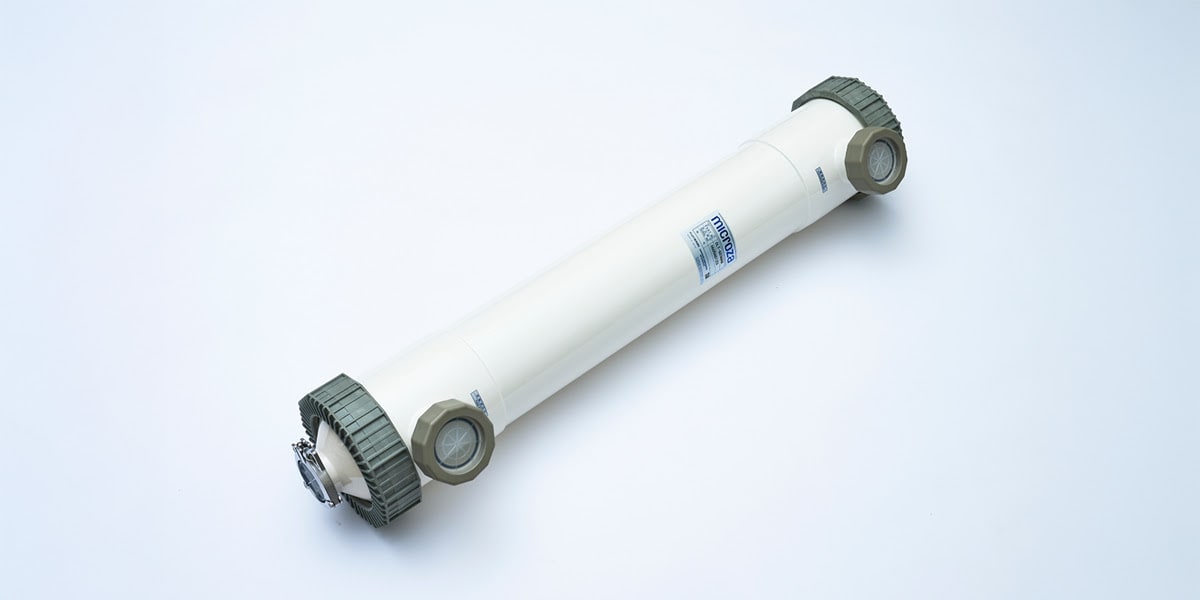

Microza® Water Treatment Process OLT Series

High-Quality UF Membrane Optimized for Ultrapure Water Production

The Microza® OLT Series has a proven track record in advanced LSI factories, providing high-precision water quality and reliability. It also meets various process requirements with a range of pressure and heat resistance capabilities.

Details of Water Treatment Process OLT Series

Features of Water Treatment Process OLT Series

Double-skin structure that collects filtered water from both ends of the module to reduce pressure loss and achieves high water quality with dense membrane structure on both inner and outer surfaces (Learn More Here)。

Long-term storage under specified conditions* is possible by filling with heat-sterilized pure water. *In a cool, dark place away from direct sunlight.

High cleanliness enables rapid stabilization of particles, TOC, and specific resistance.

A wide lineup is available, including a pressure-resistant type rated at 1,200 kPa (40°C) and a heat- and pressure-resistant type rated at 800 kPa (80°C).

Solutions for Water Treatment Process OLT Series

Application Fields by Industry

Electronics Industry: Improves the quality of ultrapure water used in semiconductor and LCD manufacturing through advanced impurity removal performance and stable operation (Learn More Here)

Application Fields by Use

Ultrapure Water Production Process in Advanced LSI Factories (Learn More Here)。

Product Specifications of Water Treatment Process OLT Series

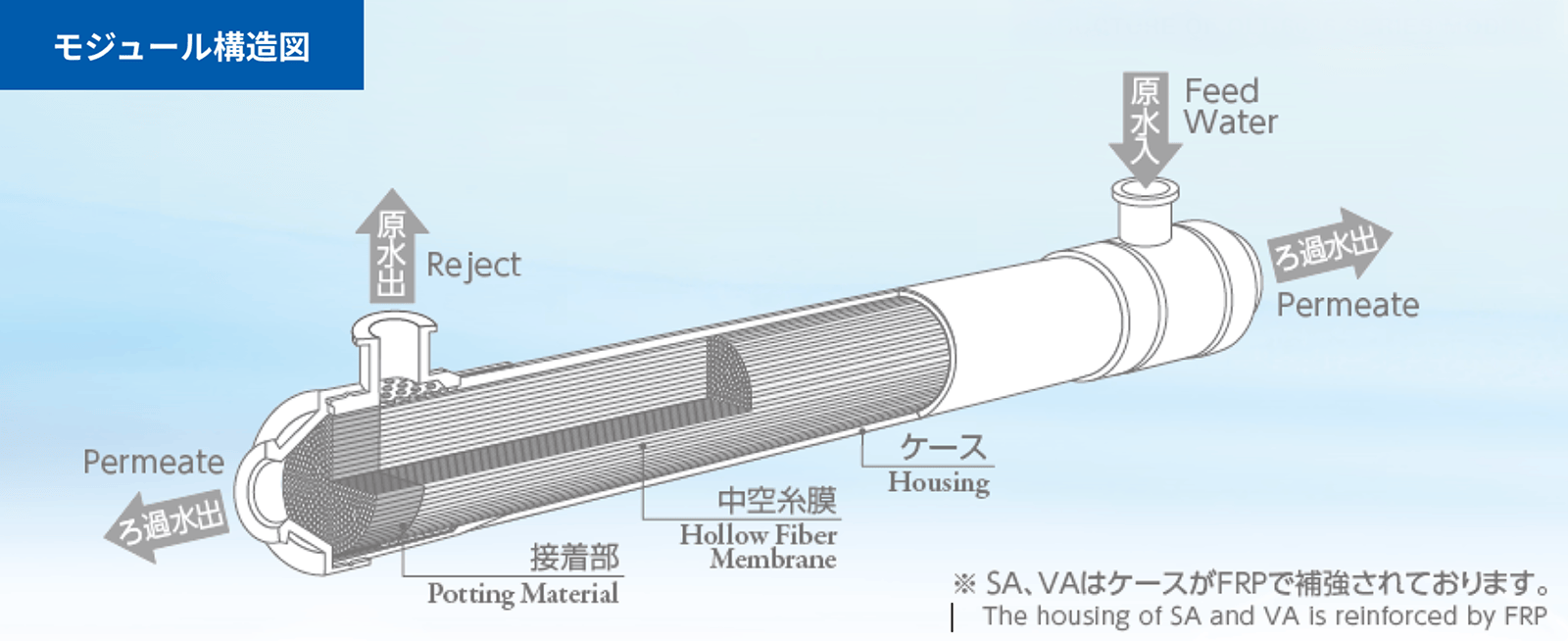

Module Structure

Module Structure of Microza® Water Treatment Process OLT Series

Physical Properties Table

Model OLT-6036 Series
OLT-6036HA OLT-6036SA OLT-6036VA
Specification Effective Membrane Area 34 m2
Module Length 1,177 mm
Module Diameter 172 mm 179 mm
Performance Nominal Molecular Weight Cut-Off 6,000
Filtrate Volume ≧16 m3/h (25°C and 100 kPa) (*1)
Operating Conditions UF Feed Water Temperature 25°C (*2) 25°C (*2) 40–69°C 70–80°C
Maximum Transmembrane Pressure 300 kPa 300 kPa 200 kPa 100 kPa
Maximum Feed Water Pressure 900 kPa 1,200 kPa 900 kPa 800 kPa
Maximum Filtrate Side Pressure 900 kPa 1,200 kPa 900 kPa 800 kPa
Main Materials Hollow Fiber Membrane Polysulfone-based
Module Case Polysulfone-based Polysulfone-based with FRP Reinforcement
Adhesive Epoxy Resin
Gasket Fluororubber
*1: This indicates the initial permeate flow rate when filtering pure water at 25 °C. It is not the design filtrate volume. *2: Up to 90 °C during hot water sterilization.

Technical Information

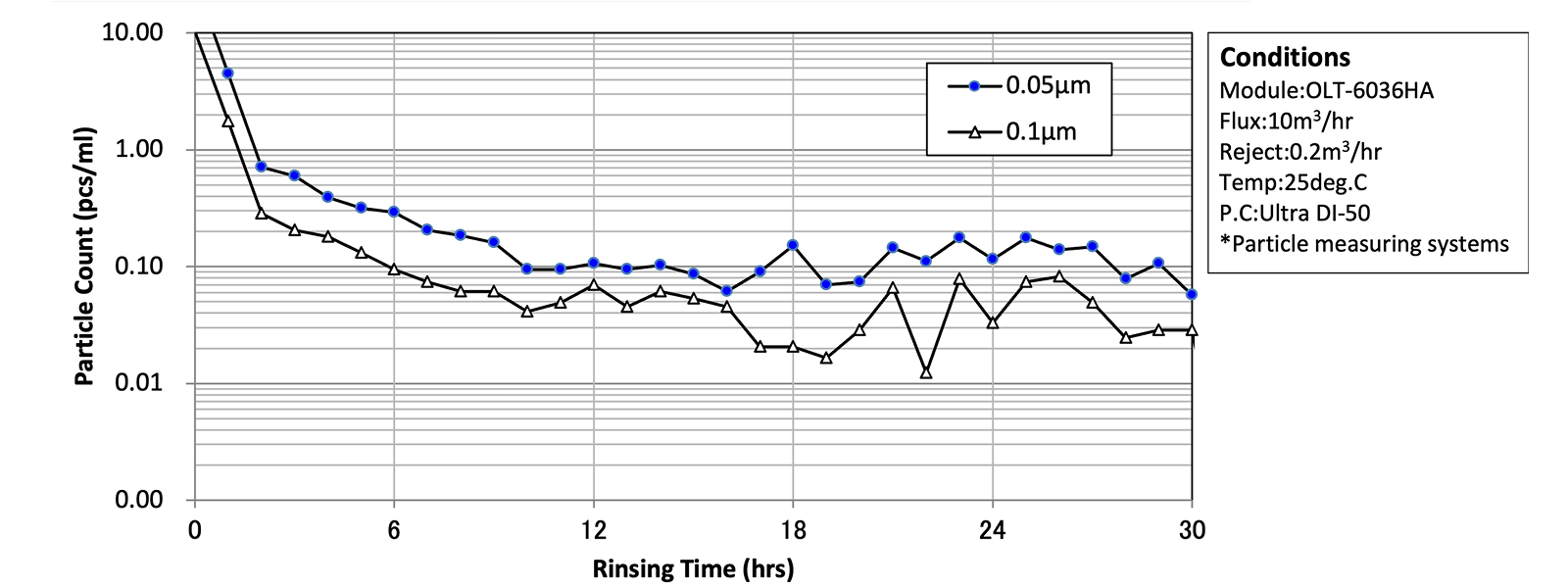

OLT-6036 Series Fine Particle Rinse-Up Data

This data compares rinse time and changes in fine particle count for the OLT-6036 Series, showing a decrease over time in particles of 0.05 µm and 0.10 µm or larger. Continued rinsing results in both particle counts stabilizing at low levels, confirming the achievement of clean water quality.

Microza® Water Treatment Process OLT-6036 Series Fine Particle Rinse-Up Data

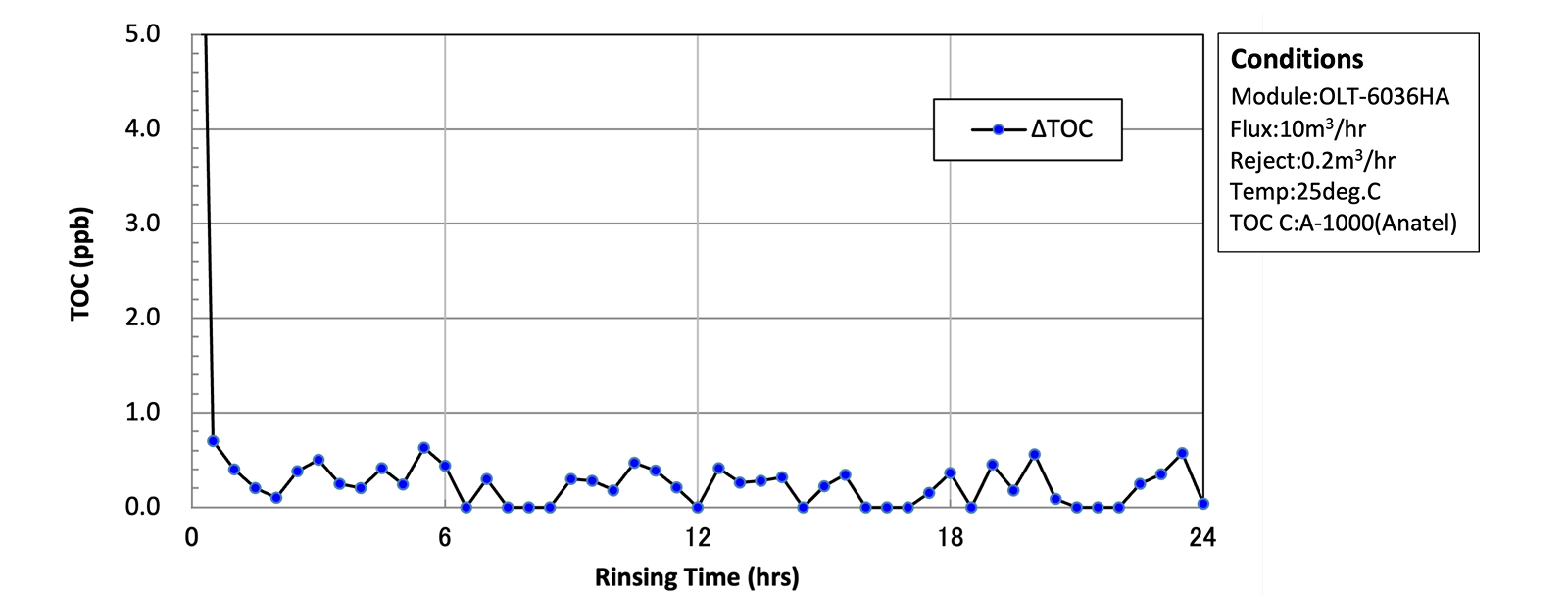

OLT-6036 Series TOC Data

This data shows changes in rinse time and TOC (total organic carbon) concentration for the OLT-6036 Series. TOC is initially high but decreases rapidly with continued rinsing, eventually stabilizing at a low level below 1 ppb. The OLT-6036 Series quickly reduces initial TOC and maintains low levels over the long term.

Microza® Water Treatment Process OLT-6036 Series TOC Data
