Lab/Pilot-scale Membrane Filtration Systems

Standard membrane filtration equipment is provided, mainly for small-scale test and commercial units.

Custom Equipment

Versatile Membrane Filtration Systems for Process Development

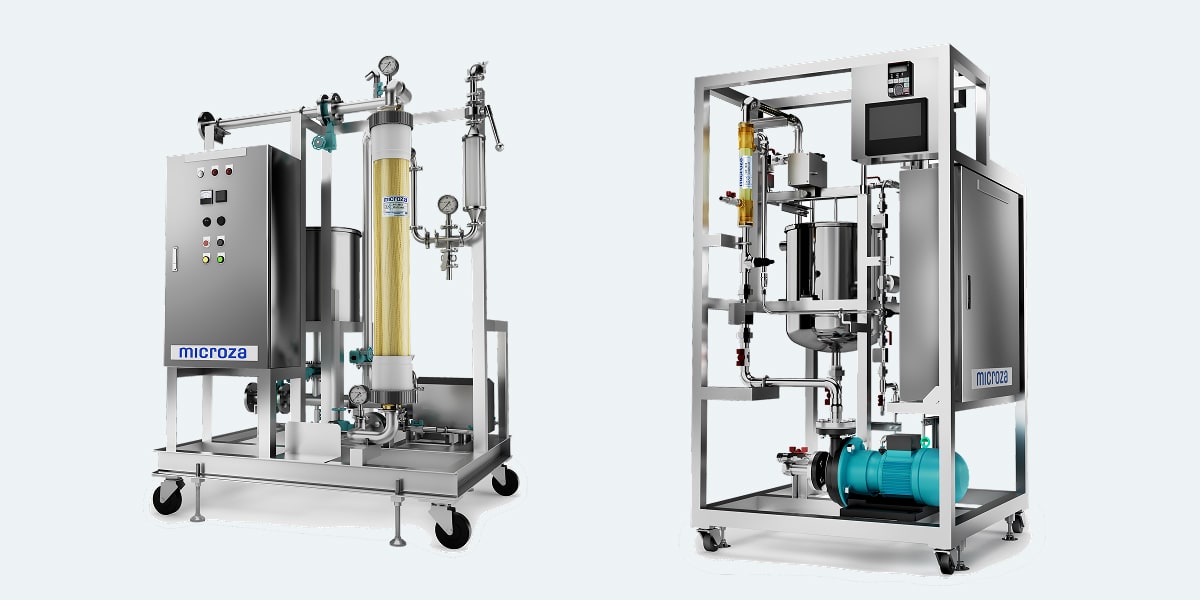

Our compact, skid-mounted hollow fiber membrane systems are designed for a wide range of non-commercial production uses — from early-stage research and feasibility studies to pilot-scale validation. Ideal for biopharma, food, chemical, and academic institutions.

Overview

Asahi Kasei offers general-purpose equipment for various applications, drawing on over 30 years of expertise in designing and manufacturing membrane filtration systems that maximize the performance of Microza®.

Our Lab/Pilot-scale Membrane Filtration Systems addresses a wide range of needs, from initial separation feasibility assessments and collection of technical data for commercial-scale system design.

Product Lineup

Desk-Top Filtration Unit for Pencil Module Test Device for Lab Module Small-scale Pilot system Largel-scale Pilot system
Appearance image_pencil_unit image_lab_large image_pilot_s_large image_pilot_m_large image_pilot_l_large
Purpose Primary assessment of separation feasibility Collection of technical data for scale-up and sytem design Mid- to long-term operation stability verification using commercial-scale modules
Feed Volume*1 <1 L <50 L Several tens to several hundreds of liters Several tens to several hundreds of liters Several hundreds to several thousands of liters
Dimensions
(W*D*H)
100*180*280 mm 880*800*1,550 mm 1,700*1,300*1,950 mm 1,300*1,100*1,950 mm 2,250*1,400*2,350 mm
Operating Weight 3 kg 300 kg 700 kg 500 kg 900 kg
Compatible Microza Type*2 Pencil Module Lab Module 3-inch module
* 1 unit
5-inch module
* 1 unit
3-inch module
* 3unit
Applications*3 Pharmaceutical, Food, Life Science, Chemical Industry, etc.
Other - Backwash available Backwash available - -
*1: The above treated liquid volume is a reference and may vary depending on liquid properties and expected processing time.
*2: For inch notation of products, please refer to the Product Information Page for Hollow Fiber Membrane Modules.
*3: For applications other than those listed above, please consult us in advance: Contact Us Here
